Description

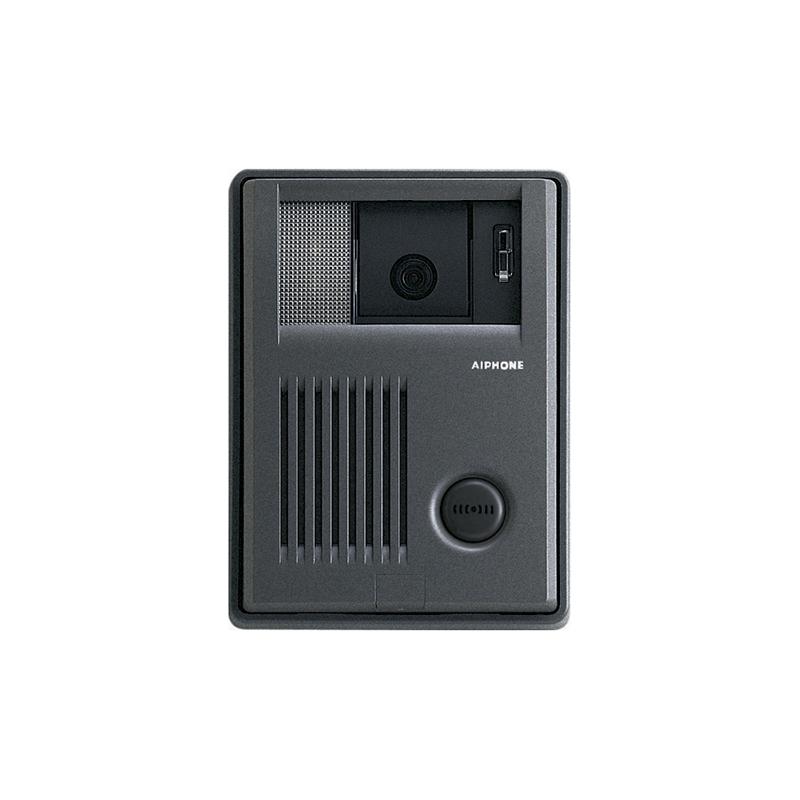

Aiphone KB-DAR KB Color Tilt Door Station (Max 3 Per System)
Aiphone KB-DAR Intercom Capacity for three video door stations and up to five video handset stations. KB Color Tilt Door Station (Max 3 Per System)
The KB Series Color Video Sentry is a video entry system with a capacity for three video door stations and up to five video handset stations
KB Video Sentry Color Tilt System
Capacity for three video door stations and up to five video handset stations.
Equipped with 4" color monitors that allow for internal communication, both selective calling, and all calls, with a hands-free reply.
- Power Source: 24V DC - Use PS-2420UL
- Calling: Chime, image, and audio approx. 30 sec., hear and see door instantly
- Communication: Pick up at any station to reply, 2-1/2 min. timed, recycle with MONITOR, monitor audio and image of the door, hands-free with MONITOR, press a station selector and call by voice, the called station replies hands-free, lift the handset, press All Call button to call the other stations with pre-tone and voice
- Video Monitor: 4" direct-view TFT color LCD
- Scanning Line: 525 lines
- Image View Area: Approx. 2" horizontal, 3/8"~7/9" vertical at 4/3" high and at 20" in front of the camera
- Night Viewing: Up to 1 from the camera, with white, LED projected, background beyond 1 cannot be seen
- Door Release: Contact rating: 12V AC, 400mA Use RY-24L for larger contact rating
- Wiring: Door to master: 2-cond., mid-cap, solid, non-shielded Master to subs: 2 x 2-cond., mid-cap, solid, non-shielded
- Distance: Master to door: 330(22AWG) 650(18AWG) Master to farthest sub: 165(22AWG) 330(18AWG) Master to IER-2: 165(22AWG) 330(18AWG)
- Wire Type: Aiphone #871802
