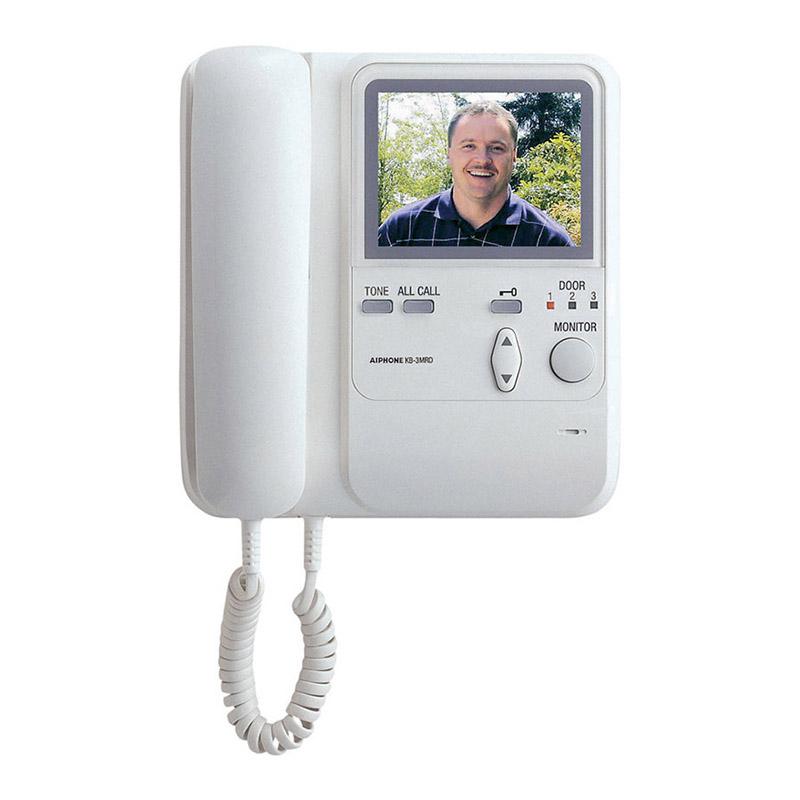

Aiphone KB-3MRD KB Color Master Station (1 Per System)

  • SKU: KB3MRD

Aiphone KB-3MRD KB Color Master Station (1 Per System)

  • SKU: KB3MRD
Sale priceDhs. 5,559.00/ea
In Stock
In Stock

Aiphone KB-3MRD KB Color Master Station (1 Per System)

Aiphone KB-3MRD Intercom KB Color Master Station (1 Per System) Capacity for three video door stations and up to five video handset stations. The KB Series Color Video Sentry is a video entry system with a capacity for three video door stations and up to five video handset stations

KB Video Sentry Color Tilt System

Equipped with 4" color monitors that allow for internal communication, both selective calling, and all calls, with a hands-free reply.

  • Power Source: 24V DC - Use PS-2420UL
  • Calling: Chime, image, and audio approx. 30 sec., hear and see door instantly
  • Communication: Pick up at any station to reply, 2-1/2 min. timed, recycle with MONITOR, monitor audio and image of the door, hands-free with MONITOR, press a station selector and call by voice, the called station replies hands-free, lift the handset, press All Call button to call the other stations with pre-tone and voice
  • Video Monitor: 4" direct-view TFT color LCD
  • Scanning Line: 525 lines
  • Image View Area: Approx. 2" horizontal, 3/8"~7/9" vertical at 4/3" high and at 20" in front of the camera
  • Night Viewing: Up to 1 from the camera, with white, LED projected, background beyond 1 cannot be seen
  • Door Release: Contact rating: 12V AC, 400mA Use RY-24L for larger contact rating
  • Wiring: Door to master: 2-cond., mid-cap, solid, non-shielded Master to subs: 2 x 2-cond., mid-cap, solid, non-shielded
  • Distance: Master to door: 330(22AWG) 650(18AWG) Master to farthest sub: 165(22AWG) 330(18AWG) Master to IER-2: 165(22AWG) 330(18AWG)
  • Wire Type: Aiphone #871802
