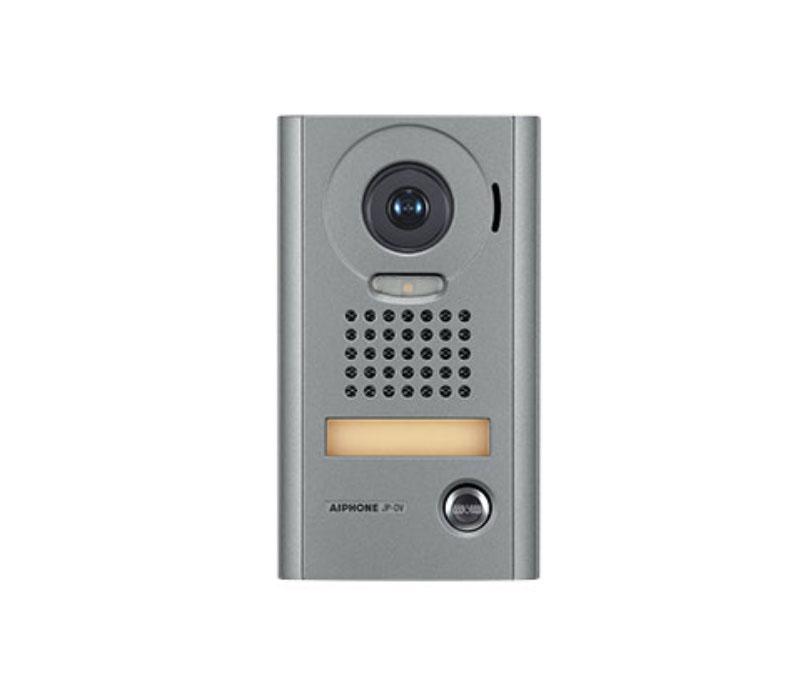

Aiphone JP-DV Video Door Station, Vandal Resistant, Surface Mount, Single Gang Mount with MKW-P Plate, Features a Color CMOS Camera, Speaker and Mic, Illuminated Call Directory, White LED Illumination

Aiphone JP-DV Video Door Station, Vandal Resistant, Surface Mount, Single Gang Mount with MKW-P Plate, Features a Color CMOS Camera, Speaker and Mic, Illuminated Call Directory, White LED Illumination Has a 7" touchscreen for system navigation.

JP Video Intercom Touchscreen System

• Power Source: 24V DC use PS-2420UL
• Communication: Hands-free (VOX) or handset (full-duplex)
• Video: Display 7" color LCD touchscreen
• Picture Memory: Internal / Built In: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting; SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
• Camera: Type: 1/4" color CMOS; View Area: 100 ° vert. x 170 ° horiz.
• Door Release: N/O dry contact, 24V AC/DC, 500mA use EL12S (use RY24L for larger contact rating and use RY3DL for 3~4 doors)
• Wire Type: Door Station to Master Station: 2 cond., mid-cap,

solid, non-shielded use Aiphone #871802
Power Supply to Master Station: 2 cond., mid-cap,
solid, non-shielded use Aiphone #871802
Master Station to Adaptor: CAT5e or CAT6
Adaptor to Sub Master Station: CAT5e or CAT6

• Distance: Door Station to Master Station: 330'

Master Station to Distribution Adaptor: 650'
Distribution Adaptor to Sub Master Station: 165'
Power Supply to Master Station: 16'(22AWG) 33'(18AWG)
Power Supply to Distribution Adaptor: 16'(22AWG) 33'(18AWG)
