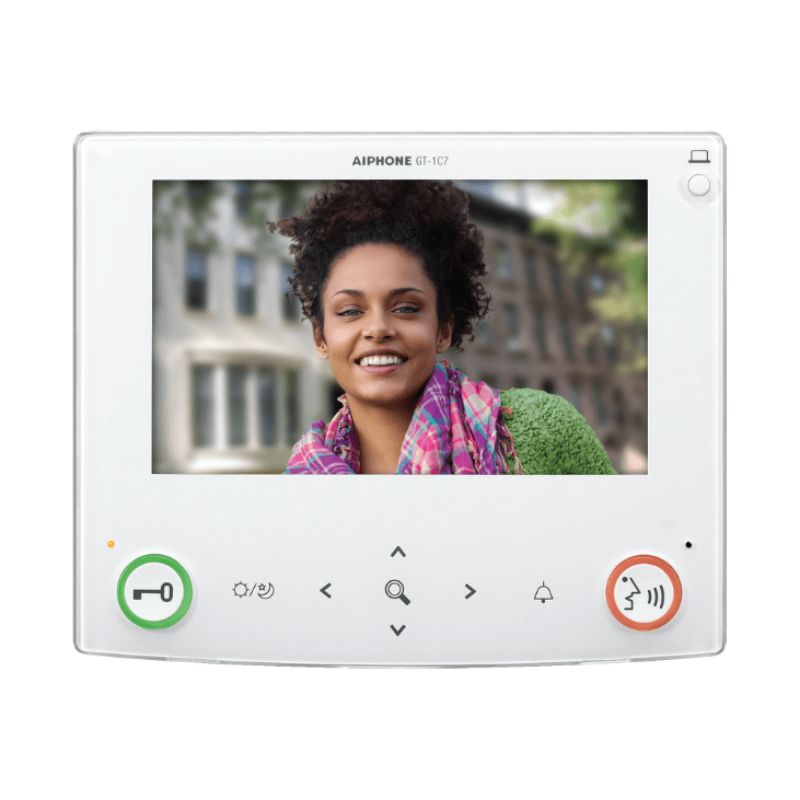

Aiphone GT-1C7 Hands-Free Color Video Tenant Station

• 7″ screen
• Digital PTZ while communicating with entrance station
• Easily contact guard station
• Light and saturation adjustments
• Secondary option button triggers a normally open contact on the back of the unit to trigger external devices

Aiphone GT-1C7 Hands-Free Color Video Tenant Station Supports up to 500 tenant stations.

The GT Series supports up to 500 tenant stations, which can communicate hands-free to a maximum of 16 entry panels and four security guard stations. The 170-degree entry station camera with PanTilt Zoom provides complete entry visibility. Choose from a one-piece stainless steel entry panel or easily configure the entry panels using either direct select or digital keypad.

GT Multi-Tenant Color Video Entry Security System

Supports up to 500 tenant stations.

• Power Supply: 24V DC - Use PS-2420UL (for GT-BC, GT-VBC, GT-NS, GT-MK, GT-BCX, and GT-2C)
• Current Consumption: GT-BC: 0.9 A, GT-VBC: 0.9 A, GT-NS: 0.13 A, GT-MK: 0.18 A, GT-BCX: 0.35 A,
• GT-2C: 0.26 A, GT-2H: 0.11 A
• Call Tone: There are three different types of call tones: from the entrance station, security guard station, and doorbell
• Talk & Video Path: Secure single channel
• Communication: Hands-free, voice-actuated communication or push-to-talk communication
• Door Release: Connecting terminals: between ELM - ELC (N/O) and ELB - ELC (N/C) Specifications: less than 4A (resistance load), 24V AC/DC, dry closure contact
• Wiring: Two conductor cables (Aiphone #872002 for audio and Aiphone #871802 for video)
• Type of Cables: Pair cable (solid wire - not stranded), polyethylene insulated, low cap, diameter 20AWG-18AWG
