Description

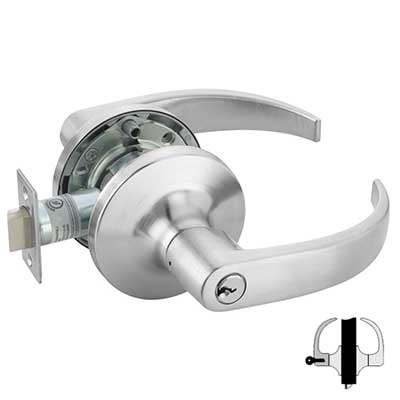

Accentra PB5308LN-626 Classroom Function Cylindrical Lockset - 2-3/4" Backset, PB Lever, US26D Satin Chromium Finish, Schlage "C" Key Way, Keyed Random
The Pacific
Technical Specifications
| Function | 08 Classroom |
| Function Family | Classroom |
| ANSI Function |
F84 - Classroom |
| Lever/Knob Design |
PB Pacific Beach |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 380AN |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
