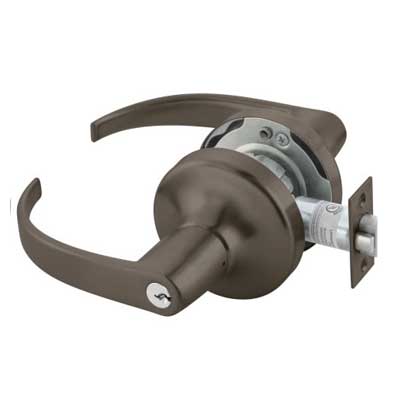

Accentra (Formerly Yale) PB4705LN-613E Storeroom Door Lock 2-3/4" Backset, - Grade 1, PB Lever, Schlage C Keyway, Keyed Random, 613E Dark Oxidized Satin Bronze
Accentra PB4705LN-613E Series grade 1 Storeroom or Closet cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The Accentra PB4705LN-613E lock is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind
Features
Available in 3 non-handed lever options: Augusta (AU), Monroe (MO) & Pacific Beach (PB)
Freewheeling trim
Longer through-bolts through the chassis provide greater stability and prevent rotation
3-1/2" roses cover ANSI/BHMA hollow metal door cutout
Technical Specifications
Door Thickness:
1-3/4" Standard
Backset:
2-3/4" ONLY
Strike:
ANSI 1-1/4" standard
Functions:
Storeroom
Cylinder Options:
Schlage 6-pin C-keyway
Latchbolt:
Stainless steel with 1/2" throw
Warranty:
7-Year Limited Warranty
Accentra PB4705LN-613E Certifications
ANSI/BHMA:
Grade 1
UL-cUL:
All locks listed for use on fire doors have a rating up to and including 3 hours.
