Accentra (Yale) MO5308LN-626 Medium Duty Cylindrical Lockset, Classroom Function, MO Lever, Schlage "C" Key Way, Keyed Random, 626 Satin Chromium Plated

  • SKU: MO5308LN626
Dhs. 1,052.00/ea
Available (2 Weeks)
2 Weeks Lead Time

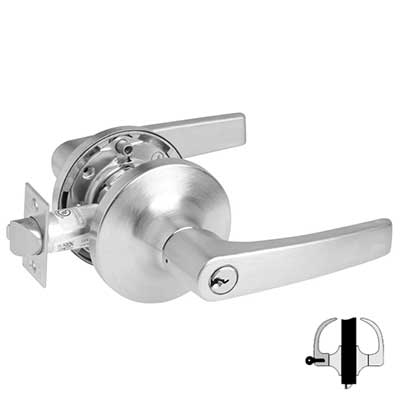

Accentra MO5308LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset,- Classroom Function, MO Lever, Schlage "C" Key Way, Keyed Random, 626 Satin Chromium Plated

The Accentra (Formerly Yale) MO5308LN-626 is a grade 2 cylindrical lock that has a 2 1/8" bore, a 2 3/4" backset. The MO stands for Monroe lever, 08 is a classroom function key locks/unlocks lever always free passage from the inside out. 626/US26D is a Satin Chrome Finish. These come Schlage C Conventional core keyed random with 2 change keys per lock.

Function
08 Classroom
Function Family Classroom
ANSI Function
F84 - Classroom
Lever/Knob Design MO Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 380AN
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock



Product Cut Sheet
