Accentra (Yale) MO5301LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset,- Passage Function, MO Lever, 626 Satin Chromium Finish

  • SKU: MO5301LN626
Dhs. 824.00/ea
In Stock
In Stock

Accentra MO5301LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset,- Passage Function, MO Lever, 626 Satin Chromium Finish

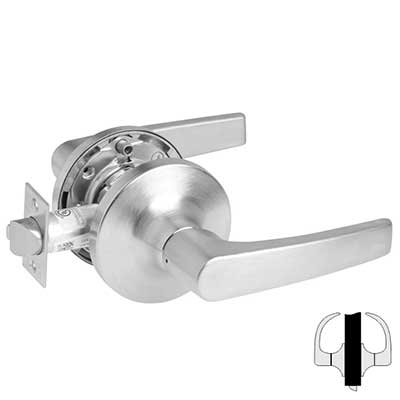

The Accentra (Formerly Yale) MO5301LN-626 is a Grade 2 Cylindrical Lock 2 1/8" bore, 2 3/4" backset. MO is a Monroe style lever, 01 stands for passage function, and the finish is a US26D/626 Brushed Chrome Finish.

Function 02 Passage Function
Function Family Passage
ANSI Function
F76A - Passage
Lever/Knob Design MO Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 380BN
Std. Latch Type Spring latch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
