Description

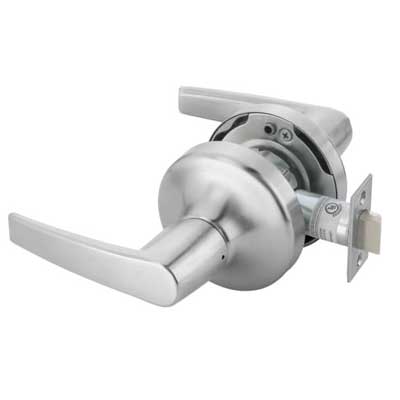

The Accentra MO4701LN-626 Passage Function Cylindrical Lever Latch set is Grade 1 Heavy Duty and available in 626 Satin Chrome Finish.
Accentra MO4701LN-626 Series grade 1 Passage cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The Accentra MO4701LN-626 Passage lock is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind.
Technical Specifications
Function | 01 Passage |
Function Family | Passage |
ANSI Function |
F75 - Passage |
Lever/Knob Design | MO Monroe Lever |
Lever/Knob Design Family | Curved Lever |
Rose/Escutcheon Design |
3-1/2" Rose Diameter |
Rose/Escutcheon Dimensions | 3-1/2" |
Cylinder Type |
Non-Keyed |
Handing | Non-handed |
Door Thickness | 1-3/4" to 2" |
Std. Latch Number | 693 |
Std. Latch Type | Beveled Springlatch |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 1" |
Lock Face Size | 1-1/8" x 2-1/4" |
Bolt Projection | 1/2" |
Bore Hole Diameter | 2-1/8" |
Std. Strike Number | 497 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Wood/Machine Screws |
Product Type | Cylindrical Lock |
