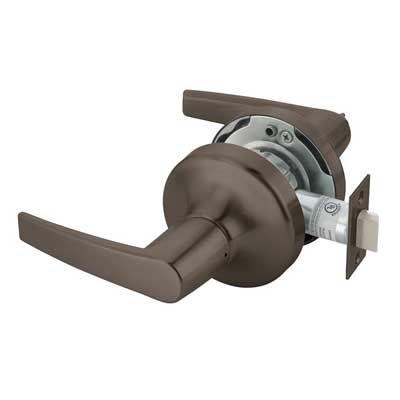

Accentra (Yale) MO4701LN-613E Passage Function Cylindrical Lock - MO Lever, Dark Oxidized Satin Bronze Equivalent

  • SKU: MO4701LN613E
AccentraMO4701LN-613E
AccentraMO4701LN-613E
All Accentra Products

Accentra (Yale) MO4701LN-613E Passage Function Cylindrical Lock - MO Lever, Dark Oxidized Satin Bronze Equivalent

  • SKU: MO4701LN613E
Dhs. 1,000.00/ea
In Stock
In Stock

The Accentra MO-4701LN-613E Passage Function Cylindrical Lever Latch set is Grade 1 Heavy Duty and available in 613E Dark Oxidized Satin Bronze Equivalent Finish.


 Accentra MO-4701LN-613E Series grade 1 Passage cylindrical lever locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price. The Accentra MO-4701LN-613E Passage lock is certified to ANSI/BHMA Grade 1 standards and is UL fire listed for all functions and ensuring reliability and peace of mind.


Function 01 Passage
Function Family Passage
ANSI Function
F75 - Passage
Lever/Knob Design MO Monroe Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-1/2" Rose Diameter
Rose/Escutcheon Dimensions 3-1/2"
Cylinder Type
Non-Keyed
Handing Non-handed
Door Thickness 1-3/4" to 2"
Std. Latch Number 693
Std. Latch Type Beveled Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 1"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
