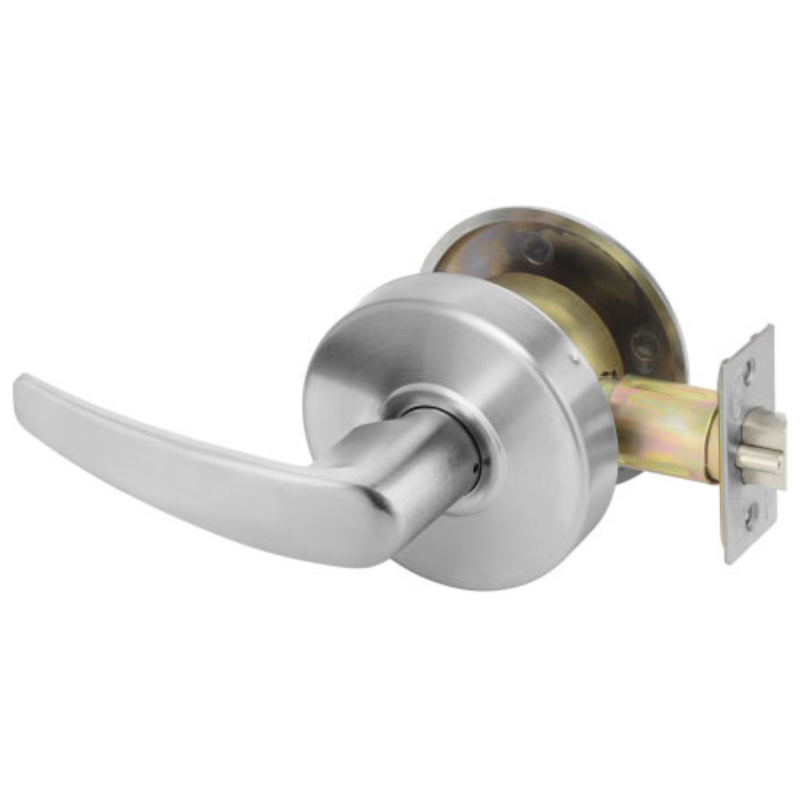

Accentra_MO4628-626

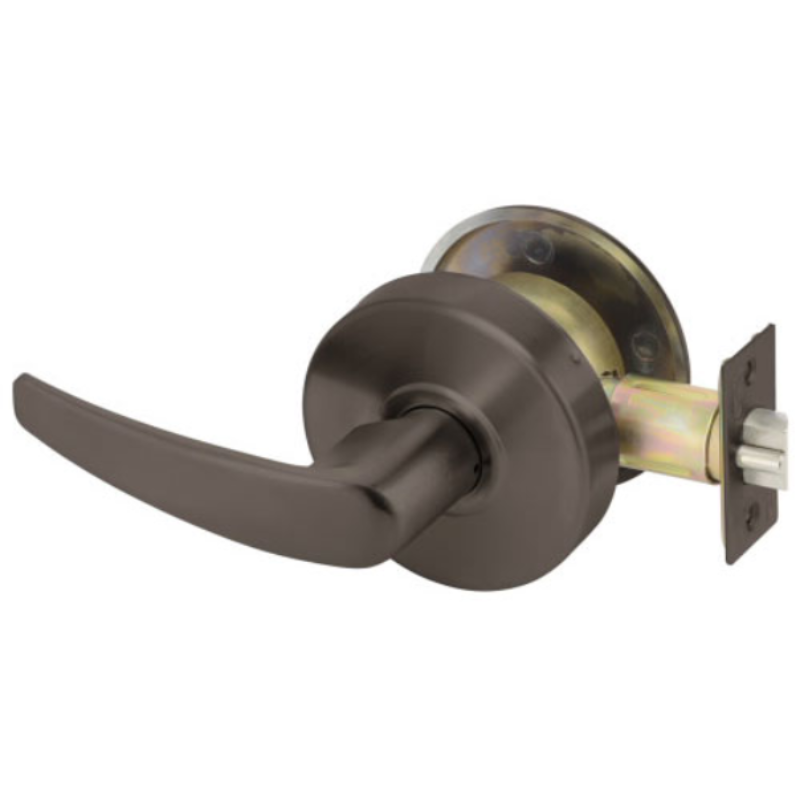

Accentra_MO4628-613

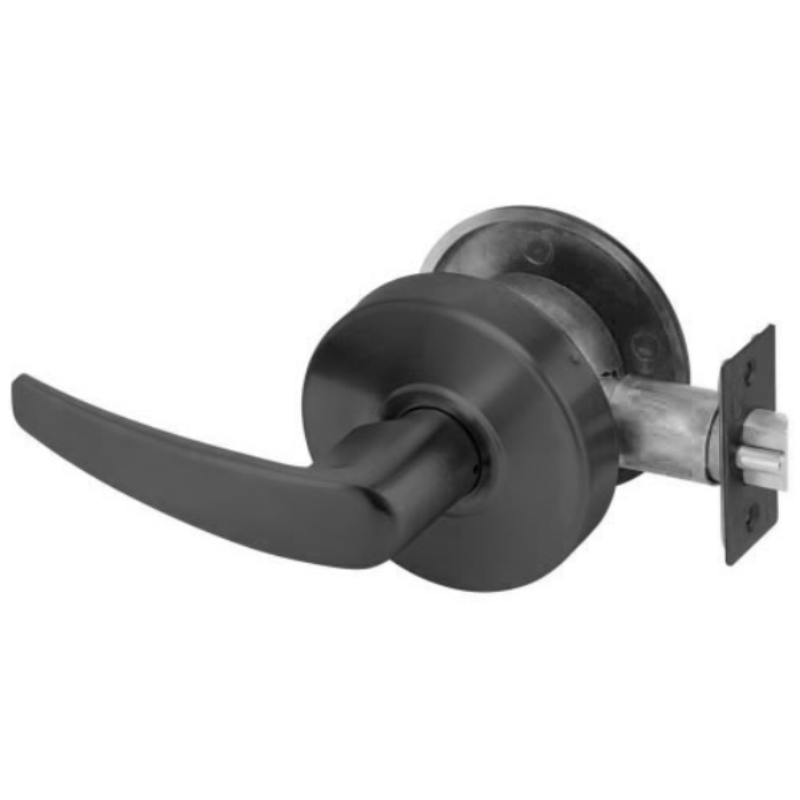

Accentra_MO4628-BSP
Accentra_MO4628-626
Accentra_MO4628-613
Accentra_MO4628-BSP
All Accentra Products

Accentra (Yale) MO4628LN Passage Communicating Door Lock, MO Lever

  • SKU: MO4628LN626
Dhs. 395.00/ea
In Stock
In Stock
Finish: US26D-626 Satin Chrome

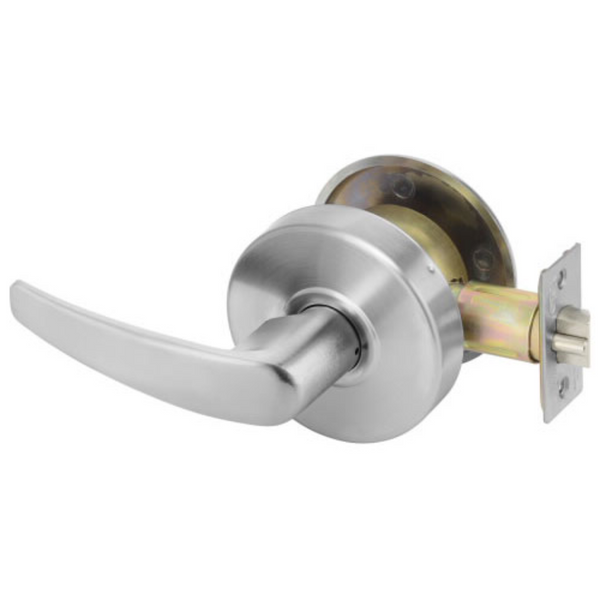

Accentra (Yale) MO4628LN Passage Communicating Door Lock - Grade 2, MO Lever, 2 3/4" Backset

The Accentra (Yale) MO4628LN Passage Communicating Door Lock, featuring a MO Lever and 2 3/4" backset, is a Grade 2 product designed for smooth and secure passage between rooms.



Function 28 Communicating
Function Family Communicating
ANSI Function
F111 - Exit Lever Only
Lever/Knob Design MO Monroe lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-3/8" Rose Diameter
Rose/Escutcheon Dimensions 3-3/8"
Cylinder Type
Non-Keyed
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Std. Latch Number MCP234
Std. Latch Type Spring latch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
