Accentra (Yale) MO4607LN Entrance Door Lock - Grade 2, MO Lever, 2 3/4" Backset, Schlage "C" Keyway, Keyed Random

  • SKU: MO4607LN626
Dhs. 429.00/ea
In Stock
In Stock
Finish: US26D-626 Satin Chrome

Accentra (Formerly Yale) MO4607LN Entrance Door Lock - Grade 2, MO Lever, 2 3/4" Backset, Schlage "C" Keyway, Keyed Random

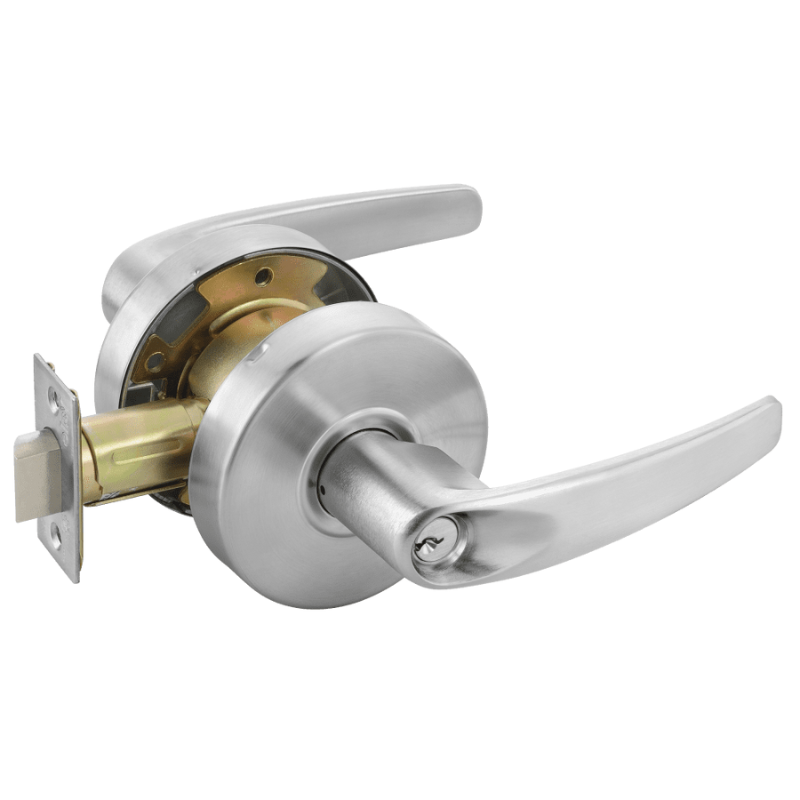

The Yale Accentra MO4607LN is a Grade 2 entrance door lock featuring an MO lever and a Schlage "C" keyway. The lock has a 2 3/4" backset and is keyed randomly for added security.
Function
07 Entry
Function Family Entrance/Office
ANSI Function
F109 - Entry/Office
Lever/Knob Design MO Monroe Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design
3-3/8" Rose Diameter
Rose/Escutcheon Dimensions 3-3/8"
Cylinder Type
Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Std. Latch Number MCD234
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
