Accentra (Yale) CA4601-630 Passage Cylindrical Knob Lockset, Non Keyed, Satin Stainless Steel Finish

  • SKU: CA4601630
Accentra (Yale) CA4601-630
Accentra (Yale) CA4601-630
All Accentra Products

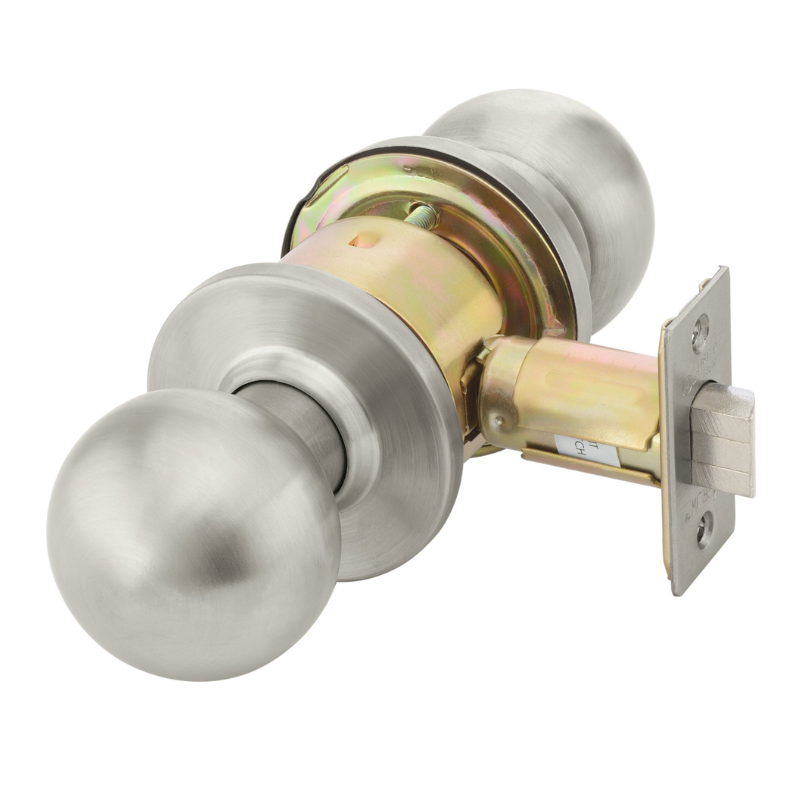

Accentra (Yale) CA4601-630 Passage Cylindrical Knob Lockset, Non Keyed, Satin Stainless Steel Finish

  • SKU: CA4601630
Dhs. 220.00/ea
Available (24‑48 hrs)
24-48 hrs Lead Time

Accentra (Yale) CA4601-630 Passage Function Cylindrical Lockset, Carolina Knob, Non Keyed, 2 3/4 Backset, 4 7/8 Strike, Grade 2, Non Handed, Satin Stainless Steel Finish

The Accentra (Yale) CA4601-630 is a passage function cylindrical lockset featuring a Carolina knob and a non-keyed design. It has a 2 3/4" backset and a 4 7/8" strike, and is graded as a Grade 2 lock. Additionally, it is non-handed and has a sleek satin stainless steel finish.

Manufacturer Accentra (Yale)
SKU CA4601 630
Unit of Measure Each
Burglar Rated No
Installation Commercial
Fire Rating 3 Hours {A}
Base Material Stainless Steel
Origin United States
Grade Grade 2
UL Listing  ANSI A156.2, Series 4000, Grade 2, UL Listed
Limited Warranty 3 Year Warranty
Function
01 Passage
Function Family Passage
ANSI Function
F75 - Passage
Lever/Knob Design
CA Carolina Knob
Lever/Knob Design Family Ball Knob
Rose/Escutcheon Design
2-9/16" Rose Diameter
Rose/Escutcheon Dimensions 2-9/16"
Cylinder Type
Non-Keyed
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Std. Latch Number MCP234
Std. Latch Type Springlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
