Description

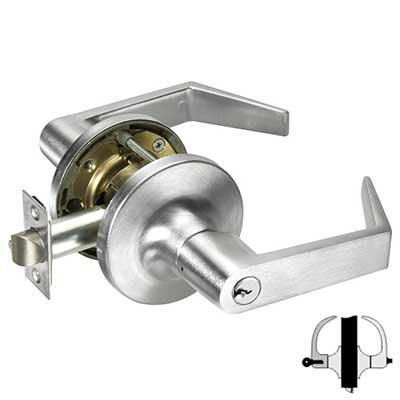

Accentra (Formerly Yale) AU5307LN-626 Medium Duty Cylindrical Lockset 2-3/4" Backset- Entrance Function, AU Lever, Satin Chromium Finish, Schlage "C" Key Way Keyed Random US26D/626 Brushed Chrome Finish
The Accentra (Formerly Yale) AU5307LN 626 is a Grade 2 Medium Duty Cylindrical Lever Lockset with a 2 1/8" bore, and 2 3/4" backset. The AU stands for the Augusta Lever. This 5300LN Series lockset comes in an 07 Entrance Function with a pushbutton inside, and a cylinder outside. The cylinder is a Conventional Schlage C fixed Core Keyed Randomly. The finish is a US26D/626 Brushed Satin Chrome Finish.
Technical Specifications
Function | 07 Entrance |
Function Family | Entrance/Office |
ANSI Function |
F109 - Entry/Office |
Lever/Knob Design | AU Augusta Lever |
Lever/Knob Design Family | Straight Return Lever |
Rose/Escutcheon Design |
3-1/2" Rose Diameter |
Rose/Escutcheon Dimensions | 3-1/2" |
Cylinder Type |
Conventional Cylinder |
Num Pins | 6 |
Key(s) | Cut |
Num of Keys | 2 |
Handing | Non-handed |
Door Thickness | 1-3/4" to 2" |
Std. Latch Number | 380AN |
Std. Latch Type | Deadlatch |
Std. Latch Backset Dim | 2-3/4" |
Latch Bore Diameter | 7/8" |
Lock Face Size | 1-1/8" x 2-1/4" |
Bolt Projection | 1/2" |
Bore Hole Diameter | 2-1/8" |
Std. Strike Number | 497 |
Std. Strike Type | ANSI Strike |
Std. Strike Height | 4-7/8" |
Std. Strike Width | 1-1/4" |
Screws | Wood/Machine Screws |
Product Type | Cylindrical Lock |
