Description

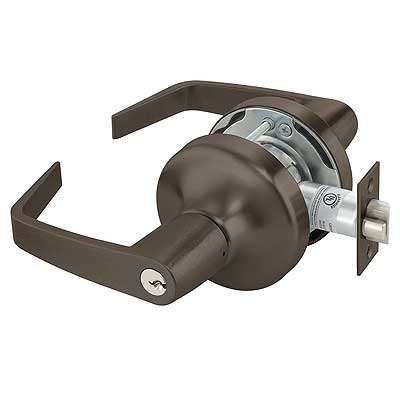

Accentra (Formerly Yale) AU4705LN-613E Storeroom Door Lock 2-3/4" Backset - Grade 1 AU Lever, Schlage C Cylinder Keyed Random, 613E Dark Oxidized Satin Bronze Finish
The AU4705LN 613E is a Grade 1 Cylindrical Lockset, 2 1/8" bore, 2 3/4" backset. This 4700LN Series has an 05 Storeroom Function. The Storeroom function always needs the key once the door closes, but you can always get out from the inside. The cylinder is a Schlage C Fixed Core, Keyed Randomly, and the Finish is a 613E Dark Oxidized Satin Bronze
Product Specifications
| Vendor | Assa Abloy |
| Manufacturer | Accentra |
| SKU | AU4705LN 613E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Bronze |
| UL Listing Type | ANSI A156.2, Series 4000, Grade 1, UL Listed |
| ANSI Number | F86 |
| Limited Warranty | 5 Year Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Finish | 613E |
| Finish Description | Dark Oxidized Bronze |
| Finish Family | Dark Bronze |
Technical Specifications
| Function |
05 Storeroom |
| Function Family | Storeroom |
| ANSI Function |
F86 - Storeroom |
| Lever/Knob Design |
AU Augusta Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-1/2" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type |
Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 694 |
| Std. Latch Type | Beveled Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 497 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
