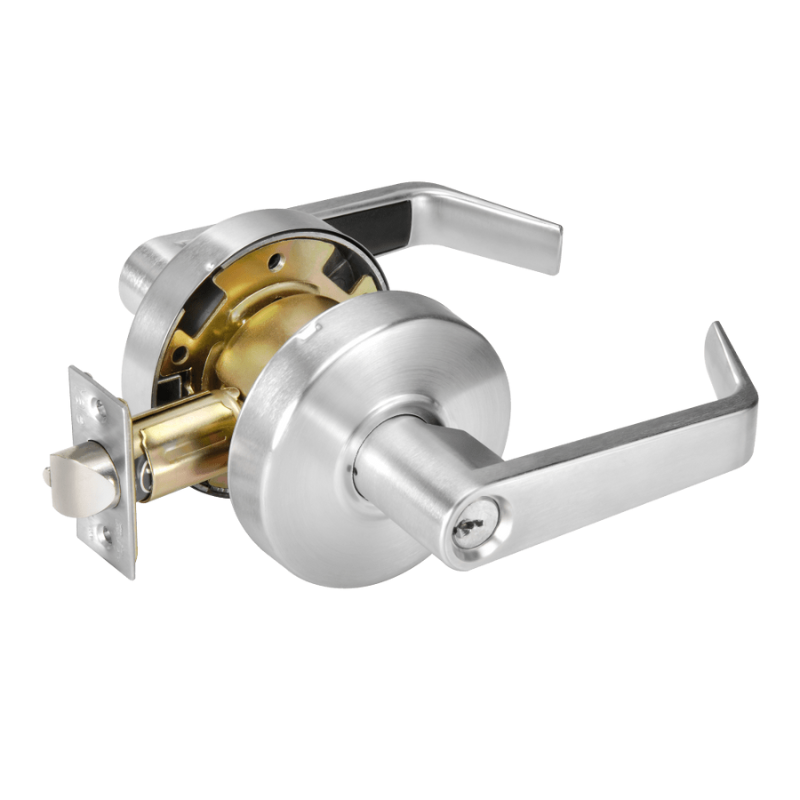

Accentra (Yale) AU4605LN Storeroom Door Lock, AU Lever, Schalge "C" Keyway Keyed Randomly

  • SKU: AU4605LN626
Dhs. 446.00/ea
In Stock
In Stock
Finish: US26D-626 Satin Chrome

Accentra (Formerly Yale) AU4605LN Storeroom Door Lock - Grade 2, AU Lever, 2 3/4" Backset, Schlage "C" Keyway Keyed Randomly

Accentra (Formerly Yale) AU4605LN Storeroom Door Lock delivers Grade 2 security with the distinctive AU Lever design. Features a 2 3/4" backset and utilizes the Schlage "C" keyway with random keying for enhanced security implementation. Ideal for commercial storeroom applications requiring controlled access.

Vendor Assa Abloy
Manufacturer Accentra
SKU AU4605LN
Grade Grade 2
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass, Bronze
UL Listing Type ANSI A156.2, Series 4000, Grade 2, UL Listed
ANSI Number F86
Limited Warranty 3 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Finish Family Matte Silver
Function
05 Storeroom
Function Family Storeroom
ANSI Function
F86 - Storeroom
Lever/Knob Design AU Augusta
Lever/Knob Design Family Straight Return Lever
Rose/Escutcheon Design
3-3/8" Rose Diameter
Rose/Escutcheon Dimensions 3-3/8"
Cylinder Type
Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1-3/8" to 1-3/4"
Std. Latch Number MCD234
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1-1/8" x 2-1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2-1/8"
Std. Strike Number 497
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Wood/Machine Screws
Product Type Cylindrical Lock
Product Cut Sheet
