Accentra (Yale) 6200ED-48-630 Narrow Stile Rim Device, 42" - 48" Door Width, Exit Only, Satin Stainless Steel Finish

  • SKU: 620048630

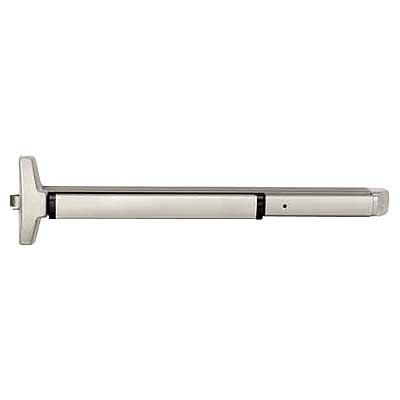

Accentra6200 630 Is a Rim Exit Only Narrow Panic Device
Accentra6200 630 Is a Rim Exit Only Narrow Panic Device
All Accentra Products

Accentra (Yale) 6200ED-48-630 Narrow Stile Rim Device, 42" - 48" Door Width, Exit Only, Satin Stainless Steel Finish

  • SKU: 620048630
Dhs. 3,268.00/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time

Accentra (Yale) 6200ED-48-630 Narrow Stile Rim Device, Exit Only, Pullman Latch, Hex Key Dogging, 42" - 48" Door Width, Grade 1, Non Handed, US32D Satin Stainless Steel Finish

The Accentra (Yale) 6200ED-48-630 is a Grade 1 narrow stile rim exit device designed for doors measuring 42" to 48" in width. It features a Pullman latch and hex key dogging for secure exit-only functionality. This non-handed device comes in a durable US32D satin stainless steel finish, ensuring both strength and corrosion resistance for demanding commercial applications.

  • Designed for narrow stile doors
  • 3/4" throw deadlocking stainless steel Pullman latch
  • Non-handed for easy installation
  • Used with narrow stile trim applications
  • Single swing narrow stile doors
  • Pairs of narrow stile doors with removable mullions
  • Metal and aluminum doors
  • 6200 for panic-rated doors only
Manufacturer  ACCENTRA
SKU 6200 48 630
Grade Grade 1
Unit of Measure Each
Installation Commercial
Fire Rating No
Limited Warranty 10 Years
Physical Appearance Narrow Stile Pushpad
Device Type Rim
Device Length 48"
Includes Trim No
Minimum Stile Size 2 In.
Door Material Metal or Wood
Door Width Optional
Door Thickness 1-3/4 In.
Fire Rated No
Reversible Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
