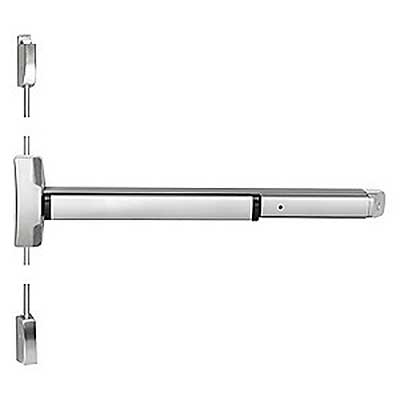

Accentra (Formerly Yale) 6170-LBR-P-630 36" Surface Vertical Rod Exit Device Less Bottom Rod with Electric Latch Retraction, US32D/630 Stainless Steel Finish, Exit Only Trim Sold Separately
The Accentra (Formerly Yale) 6170-LBR-P-36 is a 36" Surface Vertical Rod Exit Device that comes with Less Bottom Rod with Electric Latch Retraction. The 6170-LBR-P-36 Is a Grade 1 Commercial SVR Exit Device that comes in 630 Satin Stainless Steel finish and is Ideal For Commercial And Institutional Use
"ELR" Operation Allows the latch bolt to be retracted electrically for momentary or maintained periods of time from a remote location. The exit device bolt remains retracted for as long as the device is energized. Removal of power returns the device to the life safety, self-latching mechanical mode. Easy interface with central or local fire alarm systems, automatic door operators, and access control systems. Allows free egress at all times. Manual hex key dogging standard on non-rated devices
FEATURES
- Designed for wide stile and flush doors
- Handed. Specify hand (field reversible)
- Interlocking top strike and latch mounting plate
- Available less bottom rod (LBR option)
APPLICATIONS
- Single swing doors
- Pairs of doors with removable mullions
- Wide stile aluminum, metal, wood, or composite door materials
