Accentra (Yale) 6170 36" Surface Vertical Rod Exit Device, Wide Style, Exit only Trim Sold Separately

  • SKU: 6170367630

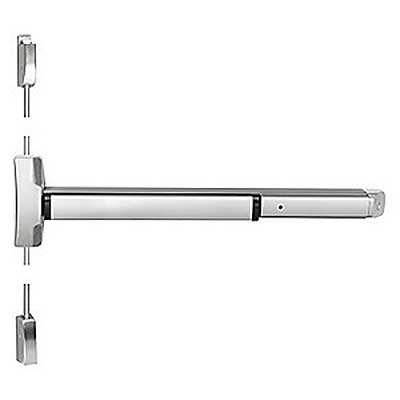

Accentra6170-36 Surface Vertical Rod Panic Bar, Exit Device
All Accentra Products

Accentra (Yale) 6170 36" Surface Vertical Rod Exit Device, Wide Style, Exit only Trim Sold Separately

  • SKU: 6170367630
  • ✓
    Available (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
Dhs. 3,230.00/ea
Finish: 630 Satin Stainless Steel (US32D)
Vertical Rod Height: 7 Feet

Accentra (Formerly Yale) 6170 36" Surface Vertical Rod Exit Device, Wide Style, Select Finish, Select Door Height, Select Handing, Exit only Trim Sold Separately

The Accentra 6170 36" Surface Vertical Rod Exit Device, Top and Bottom Latching. Accentras 6170-36" SVR Panic Bars are Ideal For Use In Commercial and Institutional Applications The 6170 Is a Grade One Exit Device.

FEATURES

  • Designed for wide stile and flush doors
  • Handed. Specify hand (field reversible)
  • Interlocking top strike and latch mounting plate
  • Available less bottom rod (LBR option)



APPLICATIONS

  • Single swing doors
  • Pairs of doors with removable mullions
  • Wide stile aluminum, metal, wood, or composite door materials
Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Device Length 36 or 48
Top Strike 726
Strike Bottom 790
Includes Trim No
Minimum Stile Size 4-1/2 In.
Door Material Metal or Wood
Door Width Optional
Door Height 7 Ft or 8ft
Door Thickness 1-3/4 In.
Fire Rated No
Reversible Yes
Product Type Surface Vertical Rod Exit Devices
Product Cut Sheet

Panic Handing Chart
