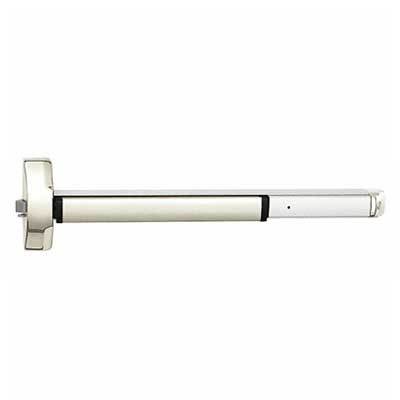

Accentra (Formerly Yale) 6100-P 630 Rim Exit Device Exit Only With Electric Latch Retraction, Wide Stile Rim Pullman Latch, US32D/630 Stainless Steel Finish, Select Door width 36" or 48", Exit only Trim Sold Separately

Overview

The Accentra (Formerly Yale) 6100-P 630 Rim Exit Device Exit Only In a Satin Stainless Steel Finish The 6100-P Is a Commercial Grade One Panic Bar with Electric Latch retraction. The 6100-P Exit Device Is Designed for wide stile doors and Has a 3/4" throw deadlocking stainless steel Pullman latch bolt. The Accentra 6100-P Is Non-Handed. Non-Rated ANSI/BHMA A156.3 Grade 1 certified. Accentra 6100-P uses Hex Key Dogging, for Use Non-Rated Doors. Listings UL/cUL listed for panic and fire exit hardware. Fire-rated devices must be wired into an automatic fire alarm system.

Electric Latch Retraction P how it works

Allows the latch bolt to be retracted electrically for momentary or maintained periods of time from a remote location. The exit device bolt remains retracted for as long as the device is energized. Removal of power returns the device to live safely, self-latching mechanical mode. Easy interface with central or local fire alarm systems, automatic door operators, hands-free actuation devices, and access control systems. Allows free egress at all times.

Electrical Specifications

Electrical Specifications Solenoid Assembly • Continuous duty • 9 amp inrush • Requires a 4-wire minimum pivot or hinge to transfer power from frame to door. • Requires the 782 controllers for operation (USING ANY OTHER POW

For use with:

6100EDP Latch Retraction, 782 Controller, Automatic Door Operator by Norton, ADA Pushbuttons by Norton, 700 Wave to Open Switches by Norton, QC8 Power Transfer Hinge by McKinney®

The operation,

The exit device allows free egress at all times, Activating the interior or exterior pushbutton retracts the latch bolt in the device and the door automatically opens. The door closes and relatches after the hold open time has elapsed in the operator.

Technical Specifications
