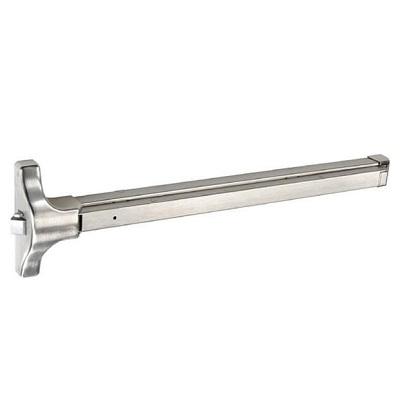

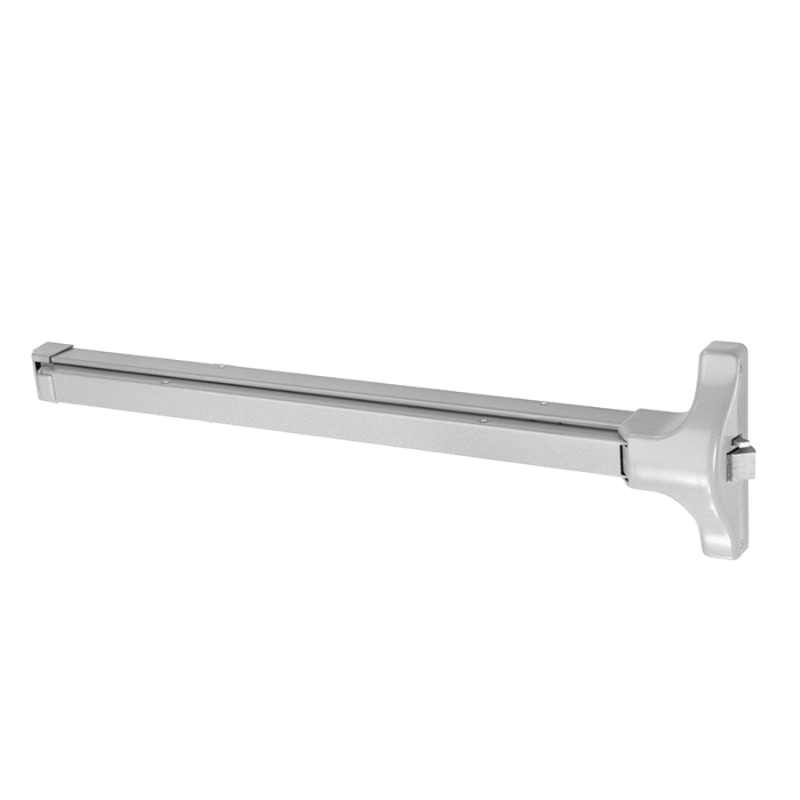

Accentra (Formerly Yale) 2100 Exit Device Exit Only Panic Bar, Select Finish, Select bar length
Accentra 2100 Exit Device Is a Grade One Commercial Exit Only Panic Bar With Hex Key Dogging, The 2100 Is Available In Three Finishes 689 Aluminum, 691 light bronze painted, or 693 Black Painted. Select Bar length for 36" and 48"
Technical Specifications
| Sizes: |
36" - For door widths 30" - 36" (76.2cm - 91.4cm)
48" - For door widths 36-1/2" - 48" (92.7cm - 121.9cm)
|
| Door Thickness: |
1-3/4" (44mm) standard |
| Minimum Stile Width: |
4-1/2" (114mm) |
| Projection: |
2-1/2" (64mm) active, 1-3/4" (44mm) depressed |
| BHMA: |
ANSI/BHMA A156.3 Grade 1 |
| UL: |
Accentra 2100F panic bars, exit devices are UL-cUL Listed for use on fire doors
having a rating up to and including 3-hours unless otherwise noted.
|
