Accentra (Yale) 1810 Surface Vertical Rod Exit Device, Exit Only, 84 Inch Height, Hex Key Dogging

  • SKU: 181036689

Accentra (Yale) 1810 Surface Vertical Rod Exit Device, Exit Only, 84 Inch Height, Hex Key Dogging

  • SKU: 181036689
  • Available (24‑48 hrs)
    24-48 hrs Lead Time
Your Price
Dhs. 1,361.00/ea
Finish: 689 Aluminum
Door Width: 36"

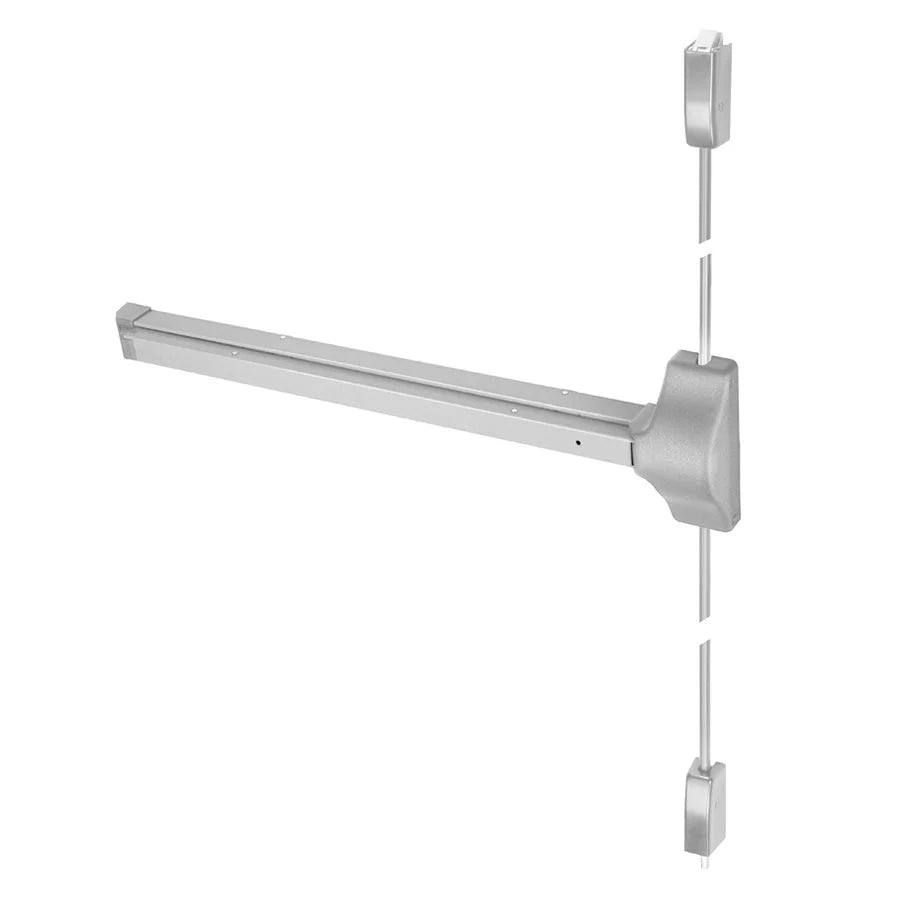

Accentra (Formerly Yale) 1810 Surface Vertical Rod Exit Device, Exit Only, For 84 Inch Door Height, Hex Key Dogging, Grade 1, Reversible

The Accentra 1810 is a heavy-duty surface-mounted vertical rod exit device engineered for 84-inch door applications. This Grade 1 certified unit delivers reliable emergency egress with exit-only functionality and reversible installation flexibility. The hex key dogging mechanism provides secure manual control when needed. Built to commercial standards, it's the dependable choice for high-traffic facilities requiring compliant, durable exit hardware.

Features

  • Designed for wide stile and flush doors
  • Handed, specify hand (field reversible)
  • Positive action linkage on a deadlocking top Pullman bolt
  • Simultaneous direct pull bottom deadbolt
  • When unlatched, device keeps both bolts retracted until door is shut

Applications

  • Pairs of doors
  • Double egress
  • Metal, wood or composite door materials


Sizes:


36" - For door widths 30" - 36"

42" - For door widths 36-1/2" - 42"

48" - For door widths 42" - 48"

Door Thickness: 1-3/4" (44mm) standard
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
Strike(Optional Buy Separately):

Top: Roller type 791. Bottom: Flush mounted 790.

794 floor strike optional (threshold openings), 702 optional (Bottom Pullman Latch)

Trims

210F series utility trim, 420F series escutcheon trim, 440F series rose trim

Dogging

Hex key dogging supplied standard on panic devices

Warranty

3-year limited




BHMA:
ANSI/BHMA A156.3 Grade 1
