Accentra (Yale) 1800 Rim Exit Device, Exit Only, Wide Stile Pushpad, Hex Key Dogging

  • SKU: 180036689
  • ✓
    Available (24‑48 hrs)
    24-48 hrs Lead Time
Your Price
Dhs. 975.00/ea
Finish: 689 Aluminum
Door Width: 36"

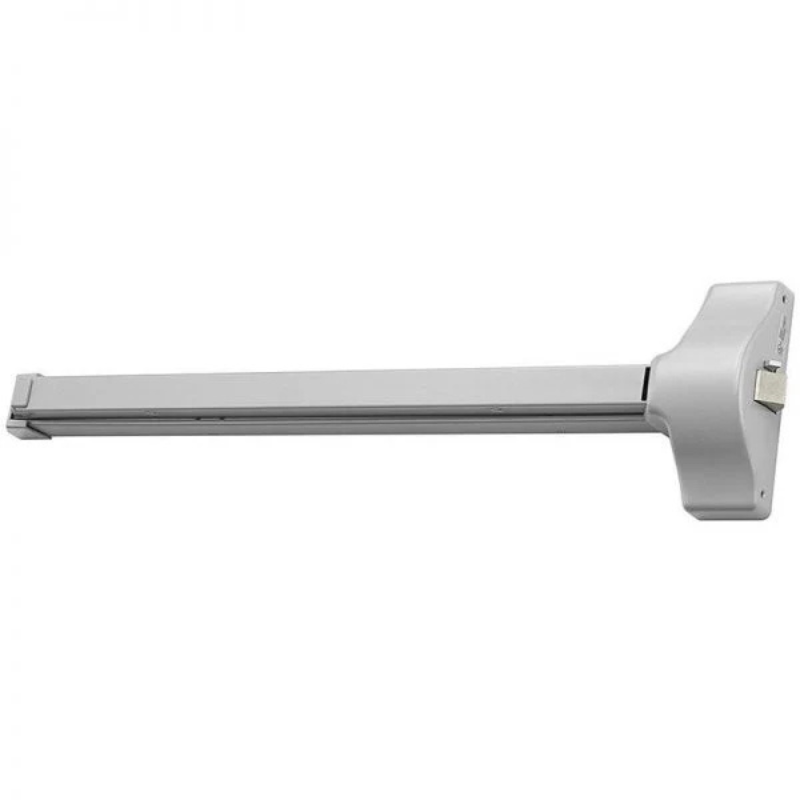

Accentra (Formerly Yale) 1800 Rim Exit Device, Exit Only, Wide Stile Pushpad, Hex Key Dogging, Grade 1, Non Handed

The Accentra (Formerly Yale) 1800 Rim Exit Device is a Grade 1, heavy-duty panic hardware solution designed for dependable emergency egress in high-traffic commercial applications. This exit-only, non-handed rim device features a wide stile pushpad for comfortable operation and hex key dogging to hold the latch retracted during authorized access periods while maintaining life-safety compliance. Suitable for single or paired doors constructed of metal, wood, or composite materials, the Accentra 1800 offers durable construction, smooth operation, and ANSI/BHMA A156.3 Type 1, Grade 1 certified performance, making it an ideal choice for schools, healthcare facilities, retail spaces, and other demanding commercial environments.

Features

  • Designed for wide stile doors
  • Non-handed for easy installation

Applications

  • Single swing doors
  • Pairs of doors
  • Metal, wood or composite door materials
Sizes:

36" - For door widths 30" - 36"

42" - For door widths 36-1/2" - 42"

48" - For door widths 42" - 48"
Door Thickness: 1-3/4" (44mm) standard
Minimum Stile Width: 4-1/2" (114mm)
Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
Strike(Optional Buy Separately):



757F, 793 optional (double door application)


Trims

210F series utility trim, 420F series escutcheon trim, 440F series rose trim
Dogging

Hex key dogging supplied standard on panic devices
Warranty

3-year limited




BHMA: ANSI/BHMA Certified:  A156.3 Type 1, Grade 1
