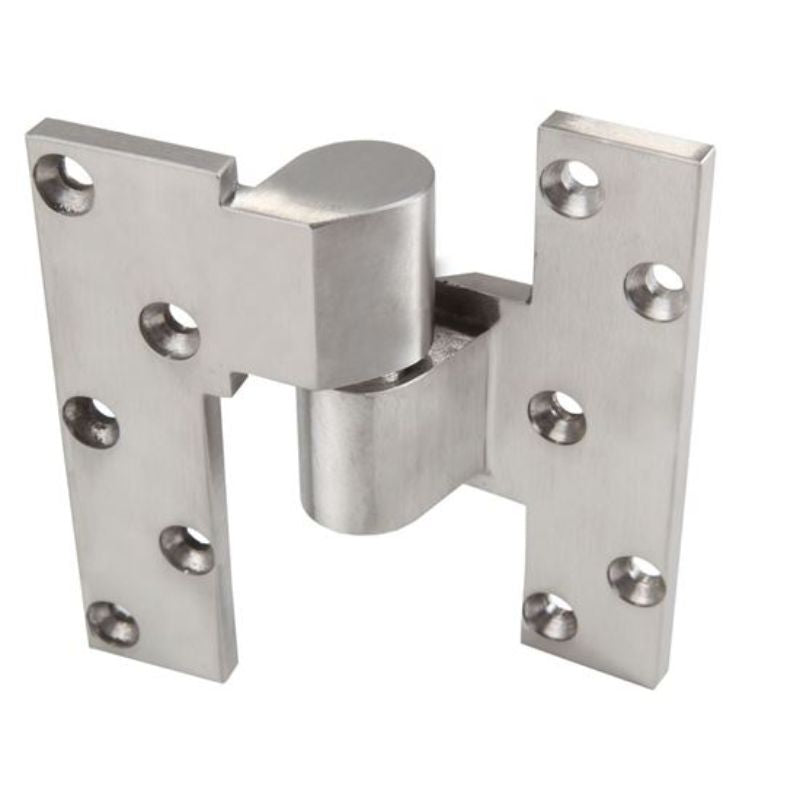

ABH L019-US32D Intermediate Lead Lined 3/4 Offset Pivot, Full Mortised, For 1 3/4 Tk Doors, Satin Stainless Steel

  • SKU: L019US32DLH

ABH L019-US32D Intermediate Lead Lined 3/4 Offset Pivot, Full Mortised, For 1 3/4 Tk Doors, Satin Stainless Steel

  • SKU: L019US32DLH
Sale priceDhs. 810.00/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time
  • LH-Left Hand
  • RH-Right Hand
Handing: LH-Left Hand
Do you want to customize this product?
Do you want to customize this product?
[Choose upto 1 values]
Note for our designers
[Maximum 100 character]
Send us a brief of your idea here, we'll contact you after you place your order.
100 Characters remaining

ABH L019-US32D Intermediate Lead Lined 3/4 Offset Pivot, Full Mortised, For 1 3/4 Tk Door, UL Listed For 3 Hr Fire doors, US32D-630 Satin Stainless Steel

The ABH L019-US32D Intermediate Lead Lined 3/4 Offset Pivot in Satin Stainless Steel is designed for use with 1 3/4 inch thick doors and is UL listed for 3 hour fire doors. This full mortised pivot provides exceptional strength and durability, making it an ideal choice for commercial or industrial settings. With its superior construction and reliable performance, this pivot is a trusted option for ensuring the safety and security of any building.

Features:

  • Doors ranging from 60” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30” in door height. (ie, 90” tall door should use two intermediate pivots)
  • Mortises into side jamb and hinge edge of door
  • Handed – Specify LH or RH
  • For use with ¾” offset lead-lined pivot sets
  • 1-¾” lead-lined doors
  • Helps maintain door alignment
  • UL listed for use on 3-hour fire rated doors - Standard
  • Heavy duty stainless steel needle bearings
  • Stainless steel base material
