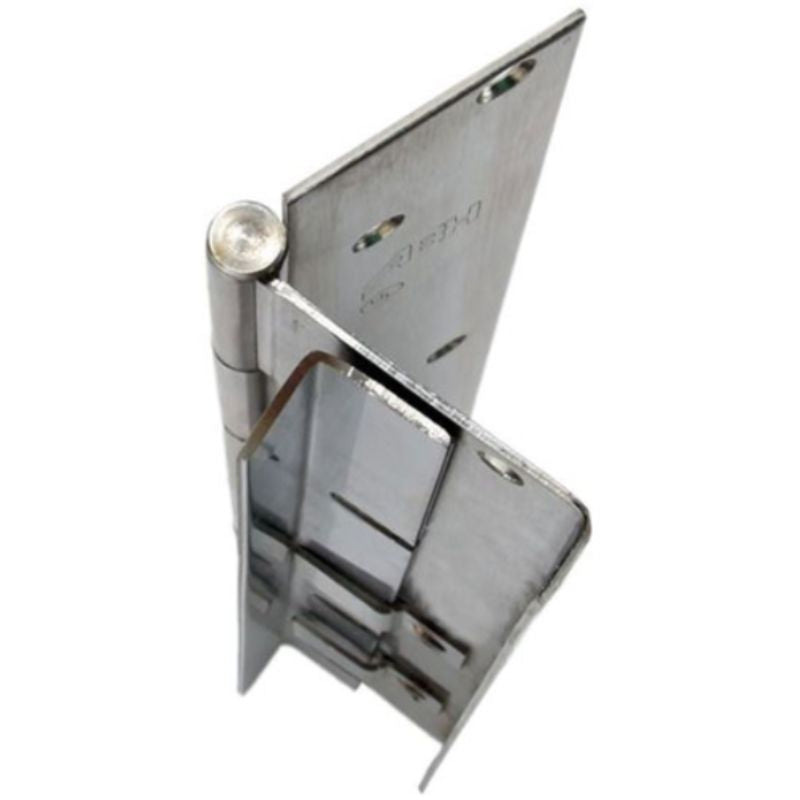

ABH A505-US32D Stainless Steel Continuous Pin And Barrel Hinge Full Concealed With Edge Guard, 48 In Max Door Width, Up to 600 Lbs, 630 Satin Stainless Steel 304 Finish

This ABH A505 hinge is made of durable stainless steel, featuring a continuous pin and barrel design with a full concealed edge guard. It can accommodate doors up to 48 inches wide and support weights of up to 600 pounds. This non-handed hinge is crafted from 304 satin stainless steel.

Features:

• Full concealed, heavy duty
• No door inset, flush mount
• Door edge guard on both faces of door
• 48” door width maximum
• 600 lbs. door weight maximum
• Fasteners: 10-24 x ⅞” undercut, self-drilling, thread-forming tek machine screws, stainless steel and #10 x 1-¼” undercut wood screws, stainless steel
• Lengths: 78-¾”, 83-⅛”, and 95”
• Finishes: US32D Satin Stainless Steel or US32 Bright Stainless Steel
• Fire Rating - tested and certified by UL® (U.S.A. and Canada) on 4’0” x 10’0” fire rated doors, based on the following:
  • 20 minutes – wood doors
  • 90 minutes – hollow metal and composite core wood fire doors
  • 3 hours – hollow metal doors
