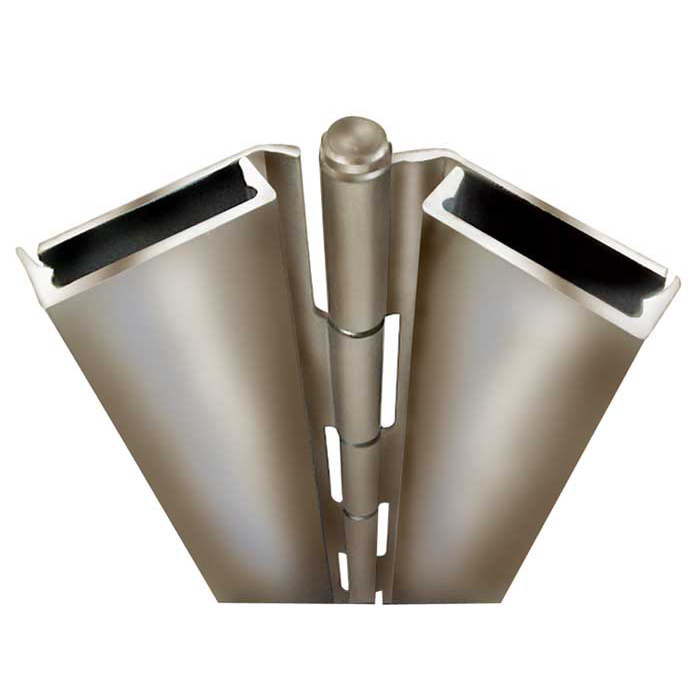

ABH A502-US32D Stainless Steel Pin And Barrel Full Surface Continuous Hinge, 48 In Max Door Width, Max Door Load 600Lbs, 630 Satin Stainless Steel 304 Finish

• Full-surface, heavy-duty
• No door inset, flush mount
• 48" door width maximum
• 600 lbs. door weight maximum
• Average weight per unit = 11 lbs per unit
• Frame and door leaf fastener covers are clear anodized aluminum
• Fasteners: 1/4-20 x 3/4" round head self-drilling tek machine screws, zinc plated for door
• Lengths: 78-3/4", 83-1/8". 85", 95" and 118-3/4"
• Fire Rating - tested and certified by UL ® (the U.S.A. and Canada) on 4'0" x 10'0" fire-rated doors, based on the following
  • 20 minutes - wood doors
  • 90 minutes hollow metal and composite wood fire doors
  • 3 hours - hollow metal doors
