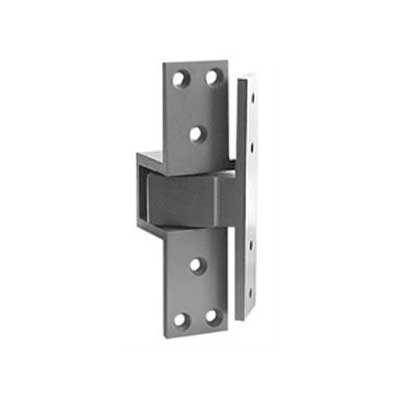

ABH 0519 Pocket Pivot-Non Handed
ABH 0519 Pocket Pivot-Non Handed
ABH 0519 Drawing
door-swing-diagram-interior-how-to-fix-that-swings-shut_11
All ABH Products

ABH 0519 Pocket Pivot, Heavy Duty Stainless Steel Needle Bearing

  • SKU: 0519US32D
  • ✓
    Available (1‑2 Weeks)
    1-2 Weeks Lead Time
Your Price
Dhs. 1,161.00/ea
Finish: US32D-630 Satin Stainless Steel

ABH 0519 Pocket Pivot, Heavy Duty Stainless Steel Needle Bearing, Max door Swing 90 Degree, Max Door Load Per Pivot 90Lbs, Non-Handed



Features:

  • The pivot point is located inside the frame
  • Allows door to swing into a pocket in the frame at a right angle
  • When the door is in the pocket, it is completely clear of the door opening and flush with the adjacent wall
  • Maximum door swing is 90° Minimum three-pocket pivots per door 60" - 90" tall
  • Add one pocket pivot for each additional 30" door height
  • Maximum door load per pivot - 90 pounds
  • Non-handed
  • UL listed for use on 3-hour fire-rated doors
  • Standard Heavy-duty stainless steel needle bearings Stainless steel base material Average
  • weight per unit = 2.5 lbs
