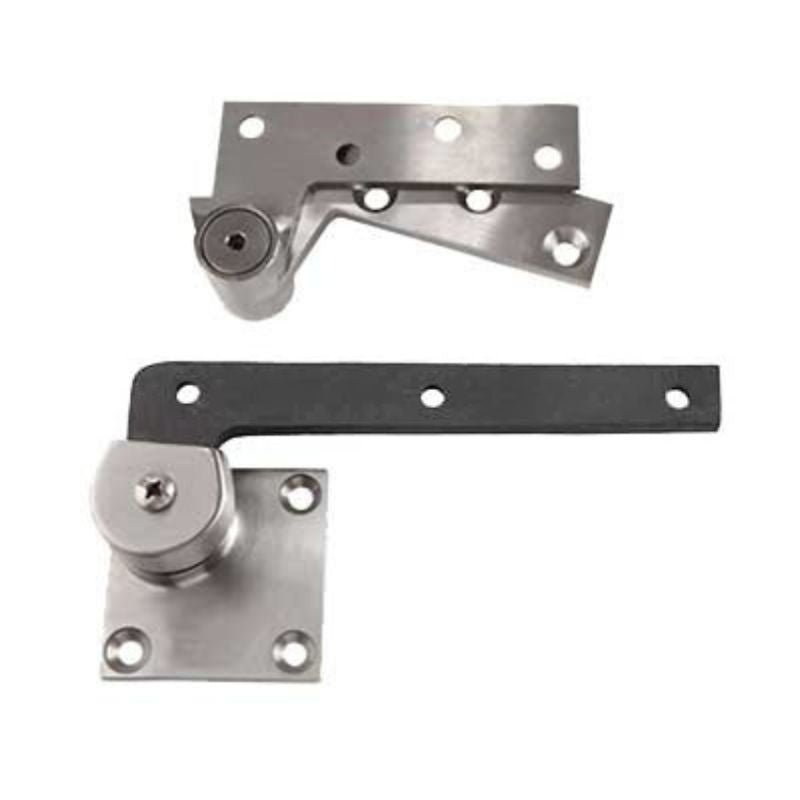

ABH 0117 Pivot Set 3/4 Offset Top And Bottom Complete Set, Max Door Width 42 Inch, Max Door Load 300LBS

Complete Top, And Bottom Set. 180 Top Pivot Frame leaf mortises into header Door leaf mortises into the top of the door 0117 Bottom Pivot Handed - Specify LH or RH

Bottom leaf mortises into floor Door leaf mortises into the bottom of door Maximum door load 300 pounds Maximum door width - 42" UL listed for use on 3-hour fire-rated doors -

Standard Heavy-duty bearings Stainless steel base material Average weight per unit = 3.25 lbs

Features:

• 0180 Top Pivot
  - Frame leaf mortises into header
  - Door leaf mortises into top of door

• 0117 Bottom Pivot
  - Bottom leaf mortises into floor
  - Door leaf mortises into bottom of door
• Handed – Specify LH or RH

• Maximum door load - 300 pounds

• Maximum door width – 42”

• UL Listed for use on 3-hour fire rated doors - Standard

• Heavy duty bearings

• Stainless steel base material
