Schlage L9000 Series Mortise Locks

What Are Schlage L9000 Series Mortise Locks?

The Schlage L9000 Series Mortise Locks are high-quality door locks from Schlage, a leading brand in commercial door security. They're designed to secure various spaces, such as healthcare facilities, retail stores, and schools, and offer different core options like Large Format FSIC and Small Format SFIC for flexible security needs.

These locks are tailor-made for areas requiring different levels of privacy and security, including bedrooms, bathrooms, classrooms, entryways, and storage rooms. Known for their durable build and user-friendly design, these locks are a reliable choice for anyone looking to enhance the safety and functionality of their spaces.

Features of the Schlage L9000 Series

The Schlage L9000 Series delivers consistent, dependable operation and stands up to constant use and abuse. The following are some of the top features offered by this series:

Strength and Durability

• Encased in a sturdy steel shell, the L9000 Series is shielded against attempted breaches through the door edge.
• Manufactured from zinc dichromate-plated metal, all the key components resist corrosion and wear.
• Sensitive electronic mechanisms are housed securely within the lock's rugged case.
• Enhanced with a two-piece anti-friction latch, the mechanism has a greatly extended lifespan.
• With through-bolting, the trims are securely interconnected and anchored firmly into the door, boosting the lock's integral strength.

Security Built-in

• Innovative break-away spindle design thwarts lock tampering and allows for quick, hassle-free replacement.
• A special hub-blocking plate adds an extra layer of security against lock-picking techniques.
• A fire-reactive spring-loaded fusible link ensures the lock remains secure in fire conditions.
• Lever attachments are smooth and screwless on the interior side, leaving no weak points for tampering.

Adaptable to Unique Applications

• The universal lock case accommodates ten locking functions, offering flexibility and convenience.
• Floating mounting tabs make installation seamless on doors with varying angles due to beveling.
• Reversing the handing of the lock can be done effortlessly without opening the lock case.
• External spring cages simplify the process of upgrading or changing trim styles.
• An apparent locking thumb turn makes it clear at a glance whether the door is securely closed.
• The levers are designed to pivot in both up and down directions, enhancing user comfort.
• Enjoy the convenience of hassle-free lever operation, ensuring smooth access from either side without interference.

Chassis:

• Case size L9000 Series: 4 7⁄16" x 6 1⁄16" x 1" (113 mm x 154 mm x 25 mm).
• Spacing: Knob or lever to cylinder: 3 7⁄8" (98 mm); Knob or lever to thumb turn hub: 2 11⁄16" (68 mm).
• Door thickness: Standard: 1 3⁄4" (44 mm), Optional: 1 3⁄8" (35 mm) to 2 1⁄2" (64 mm). For doors over 2 1⁄2" (64 mm), door ranges vary by function. Specify door thickness if other than 1 3⁄4".

Trim:

• Handing for the L9000 Series is field-reversible without needing disassembly.
• Lever/knob designs include forged brass or bronze and cast stainless steel, with heavy-duty wrought brass, bronze, or stainless steel.
• Available with a knob on both sides, lever on both sides, or knob/lever combinations. However, roses cannot be combined with escutcheons.

Latch and Deadbolt:

• Backset 2 3⁄4" (70 mm) only.
• Standard armor: 1 1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); optional: 1 1⁄16" x 8" x 7⁄32" (27 mm x 203 mm x 6 mm).
• Latch: 3⁄4" (19 mm) throw stainless steel latch with anti-friction tongue.
• Deadbolt: 1" (25 mm) throw stainless steel deadbolt.

Explore the Best Selling Schlage L9000 Series Mortise Locks at Qualitydoor.com

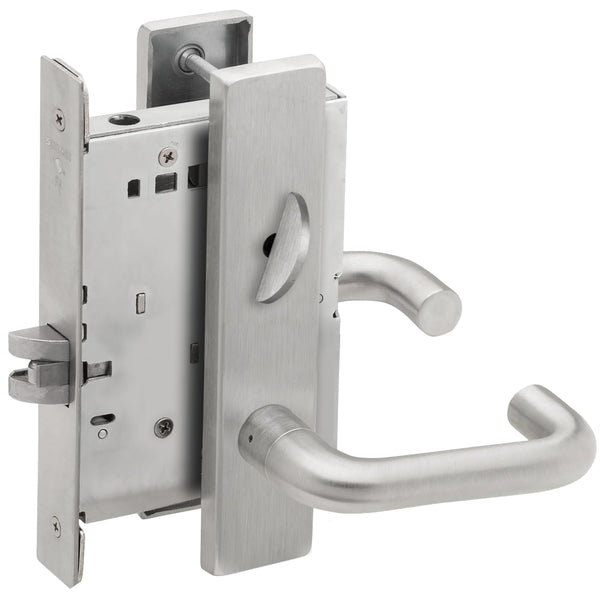

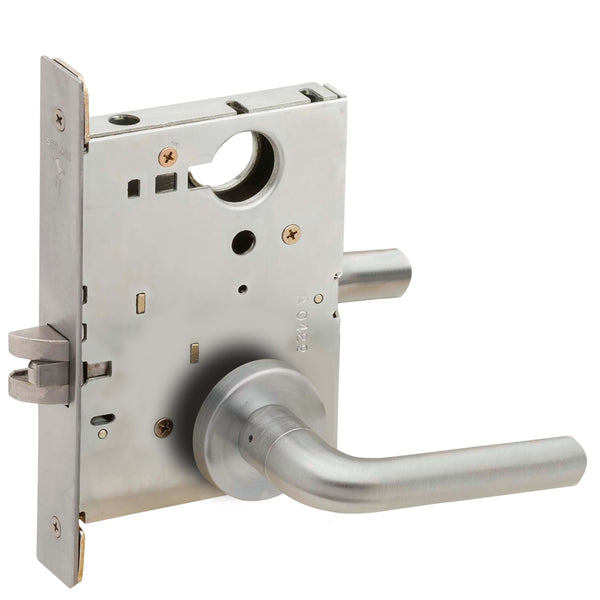

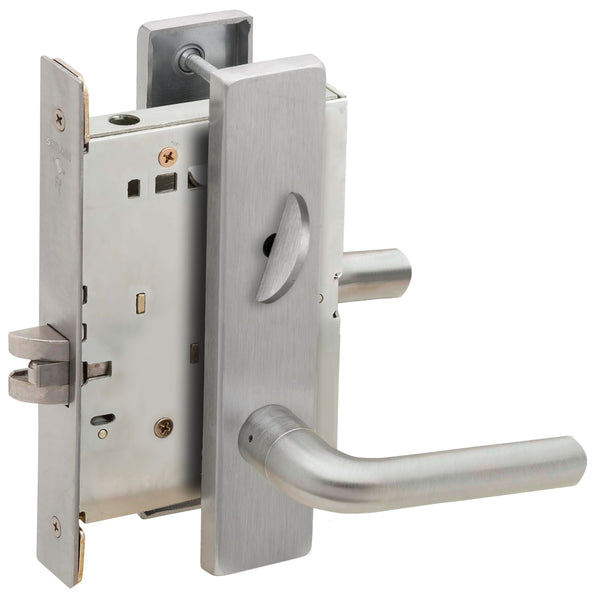

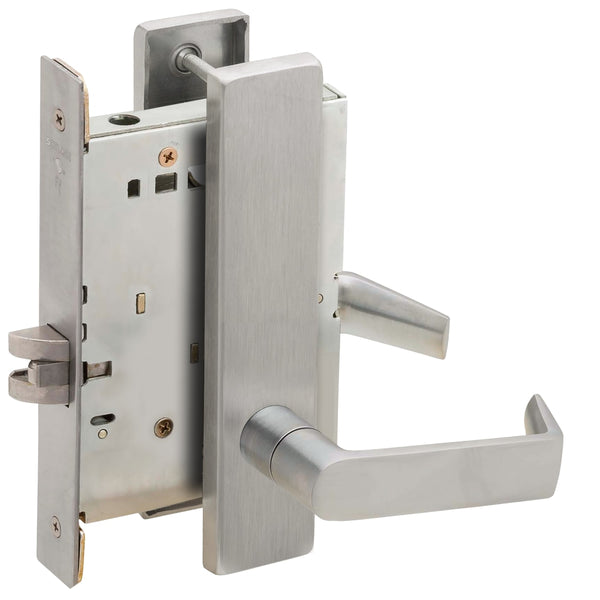

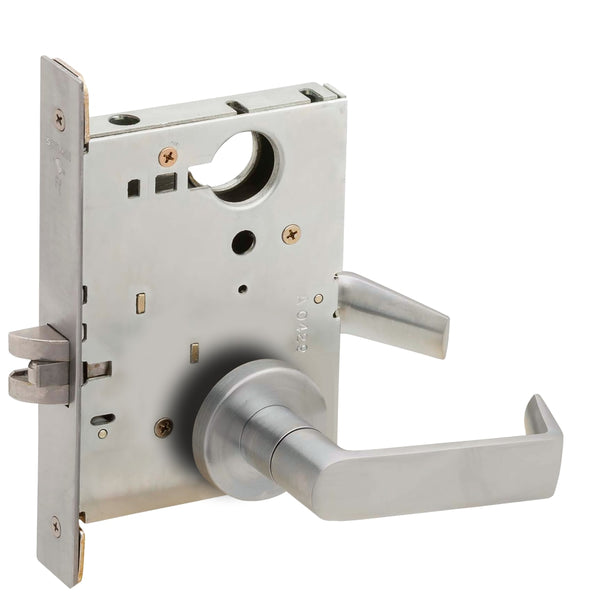

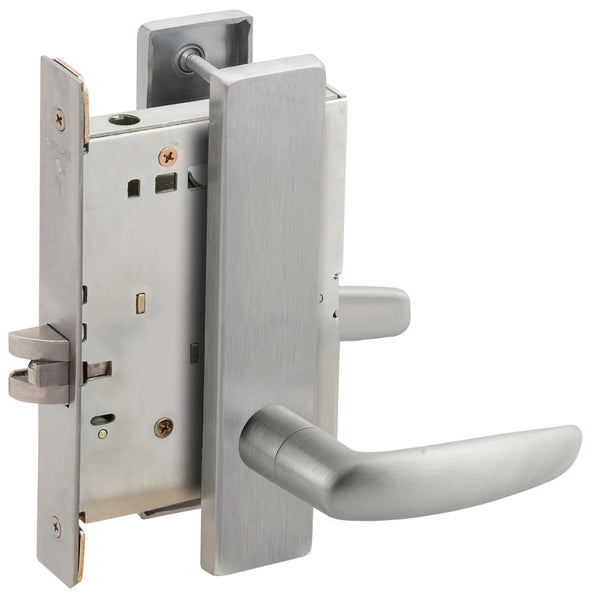

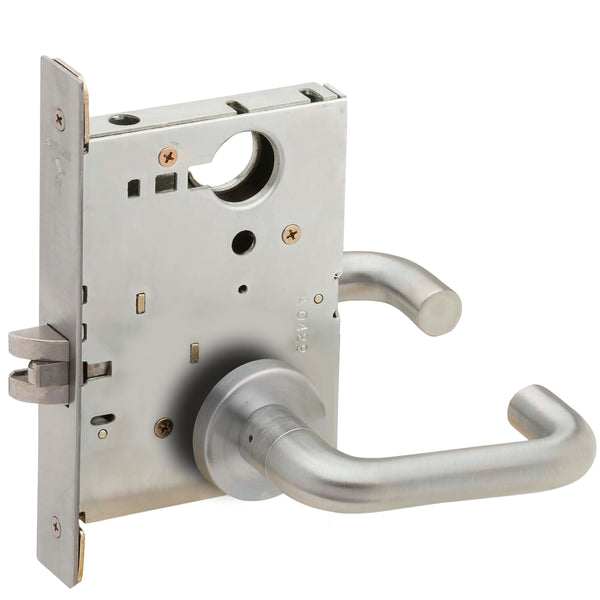

Qualitydoor.com offers an extensive selection of Schlage L9000 Series Mortise Locks available in various levers (02, 03, 06, 07, 12, 17, Latitude), finishes (643E Aged Bronze, Bright Chrome US26-625, Bronze US10B-613, Matte Black 622, and more), and configurations.

These mortise locks ensure seamless integration with any door style and application. Explore the Schlage L9000 Series Mortise Locks range at Qualitydoor.com or visit our showroom to find the perfect solution for your needs.
