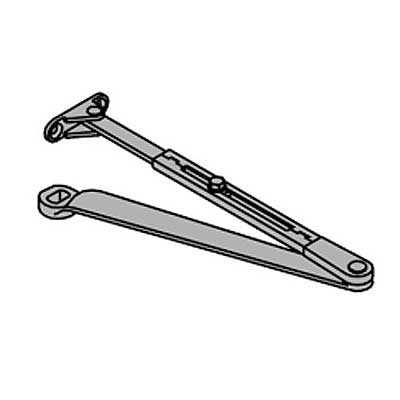

LCN 4010-3077-695 Regular Arm Dark Bronze 695 Finish

The LCN 4010-3077-695 is a Regular Arm for LCN 4010 Series Surface Mounted Closers and comes in a Dark Bronze 695 finish.

4010 Series Surface Mounted Closers

The 4010 is the best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

The Surface-mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.

Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See the Options tab for options.
Sized cylinders for interior doors to 5'0" and exterior doors to 4'0".
Non-sized cylinder (4011) adjustable for interior doors to 4'6" and exterior doors to 3'6".
Closer mounts hinge side, specify right or left swinging door.
Corner brackets available. See the Options tab for options.
4011 cylinder meets ADA requirements.
Standard or optional custom powder coat finish.
The optional plated finish on the metal cover, arm, and fasteners.
Optional SRI primer for installations in corrosive conditions is available with powder coat only.
The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
Tested and certified under ANSI Standard A156.4, grade one.

Product Specs
Vendor	Allegion
Manufacturer	LCN
SKU	4010-3077 695
Unit of Measure	Each
Base Material	VARIES
BAA Qualified	Yes
Finish	695
Finish Description	Dark Bronze Painted
Finish Family	Dark Bronze

Technical Specs
Mounting Style	Regular or Top Jamb
Hold Open	No
Arm Type	Regular Arm
Hand	Non-Handed
Product Type	Door Closer Arms
